School lockers | reference

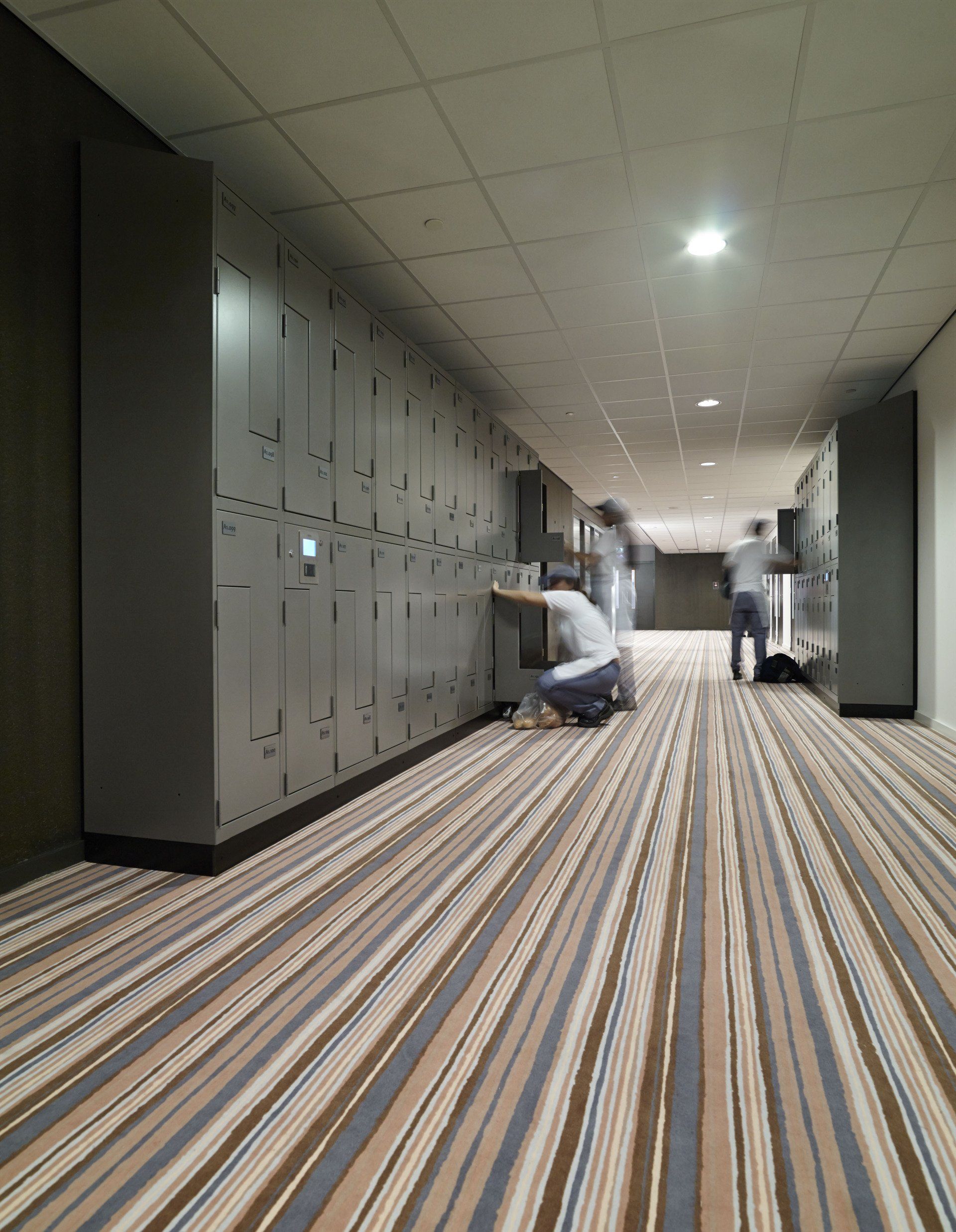

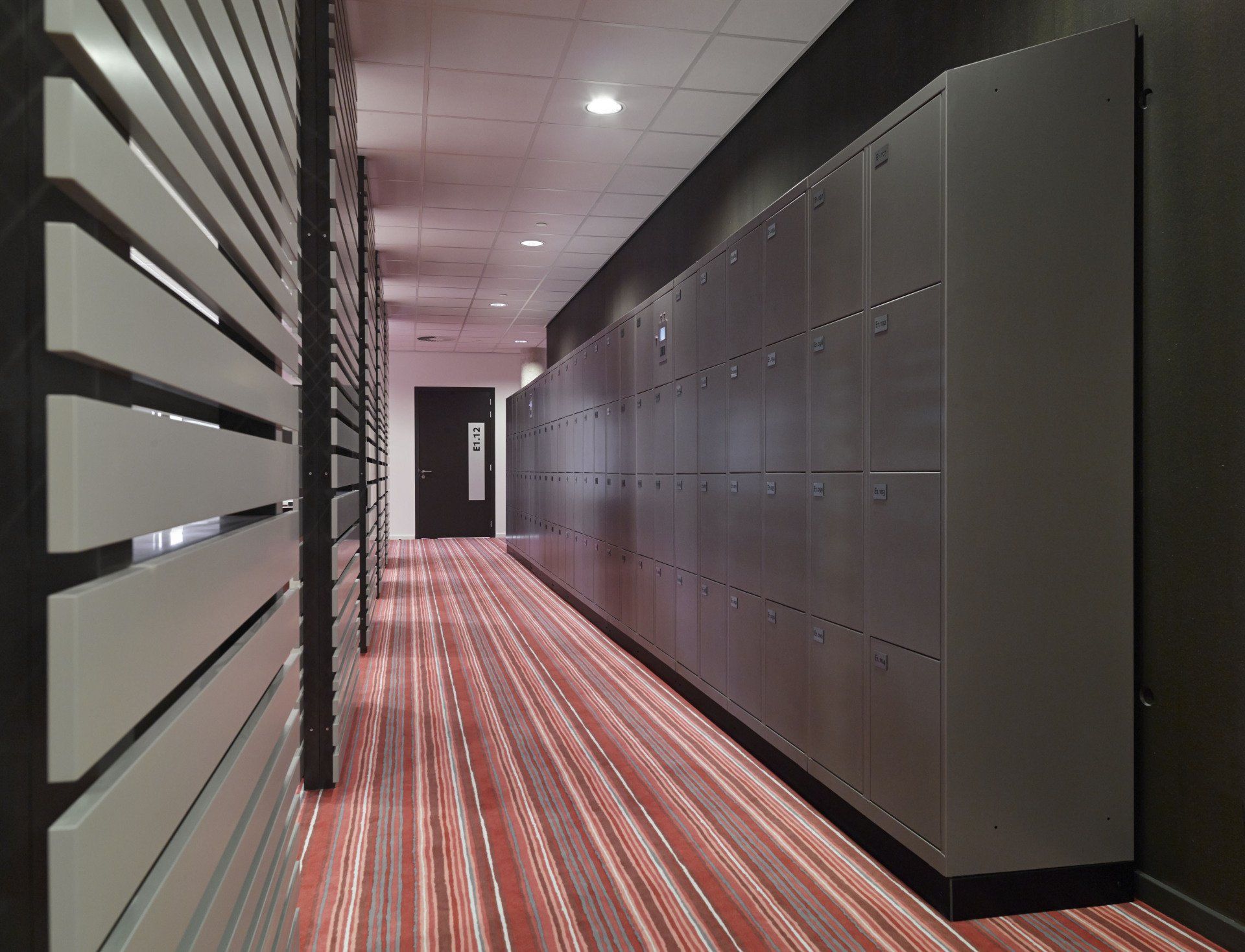

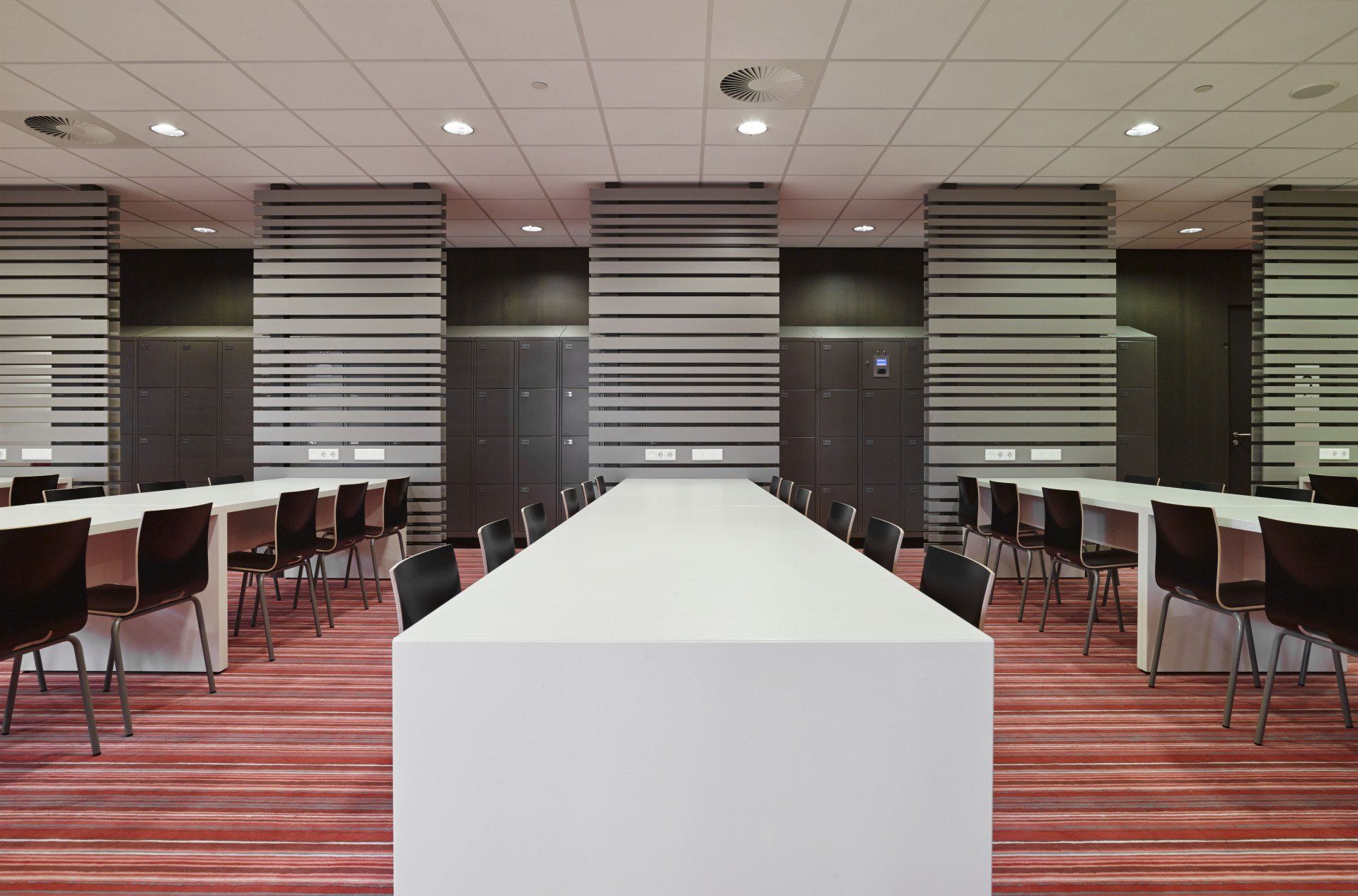

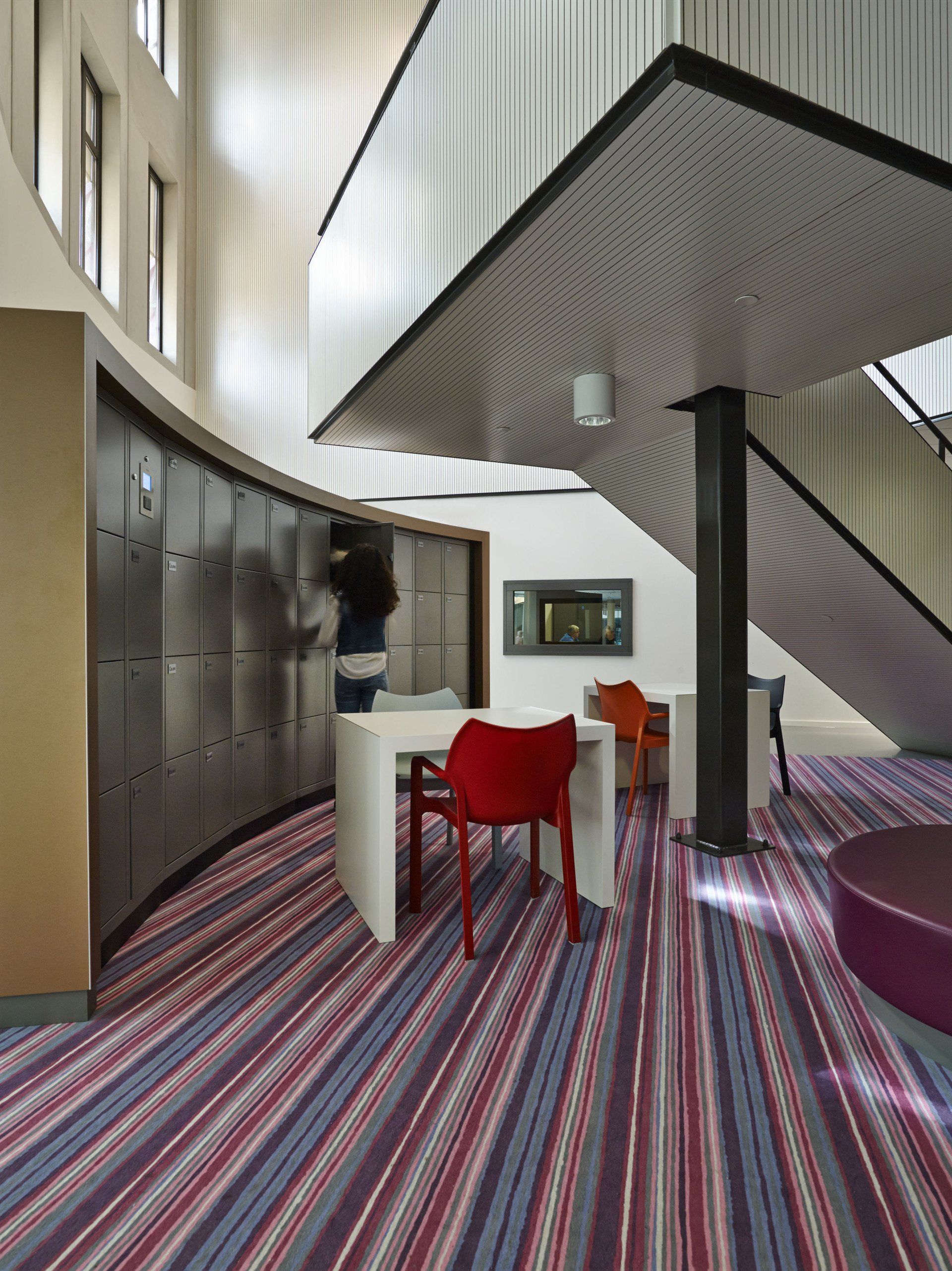

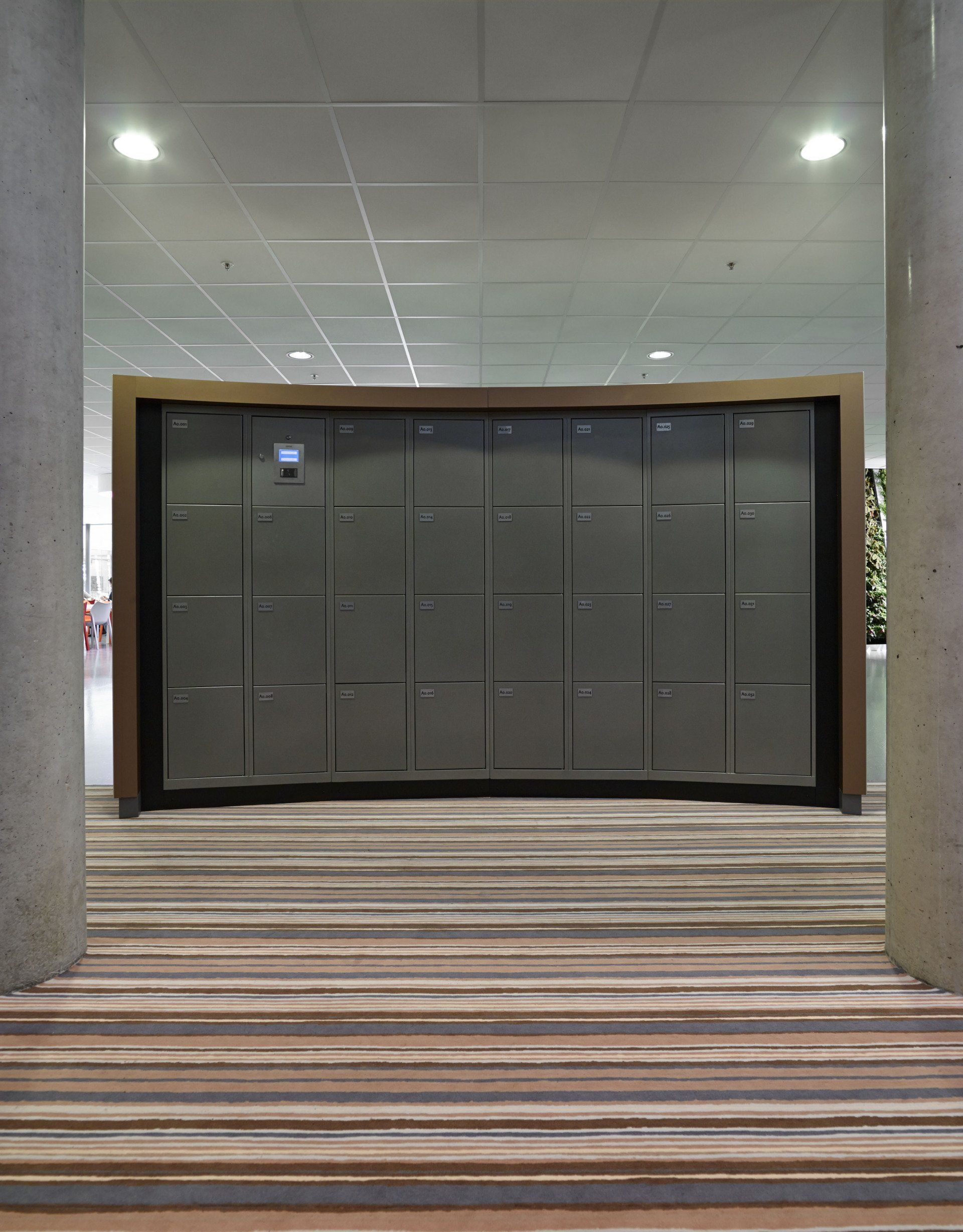

Vista College, Heerlen
Stylish, vandal-resistant lockers with online locker management system
Project specifications:
- Function: storage solution for students, teachers and employees
- Number of lockers: ± 2,300
- Lock system: wired, online lock system with real-time management functionality
- Material: sheet steel with durable, environmentally friendly epoxy powder coating
Locker specifications:
- various versions: 2-compartment, 3-compartment, 4-compartment, 5-compartment and Z-box
- dim. 500 x 1970(2140) mm (dxh)
- column width 400 mm
- stable welded, steel housing without sharp edges
- connectable for a sleek optical appearance
- with integrated flat or sloping roof
- ventilation perforation in rear wall
- housing made of 1 mm sheet steel
- inset, flat doors made of 1.5 mm sheet steel
- per door with number plate
- door flush, hinged over continuous rod
- door opening limiter 90°, per door
- door incl. reinforcement over the entire height of the door
- inner side, door provided with rivet nuts for fixing latch
- compartment, equipped with secured lock/cable channel, suitable for wired electronic locks
- cables are guided from each compartment to the plinth
- interior construction plinth 100 mm (incl. solid core plinth, anthracite, removable)
- environmentally friendly, durable, scratch-resistant powder coating
- color RAL 9007
